Hydraulic bolt tensioning

Are you looking to comprehend the workings of hydraulic bolt tensioning ? In this article, you'll discover comprehensive insights to adeptly assess the array of hydraulic bolt tensioning solutions available in the market.

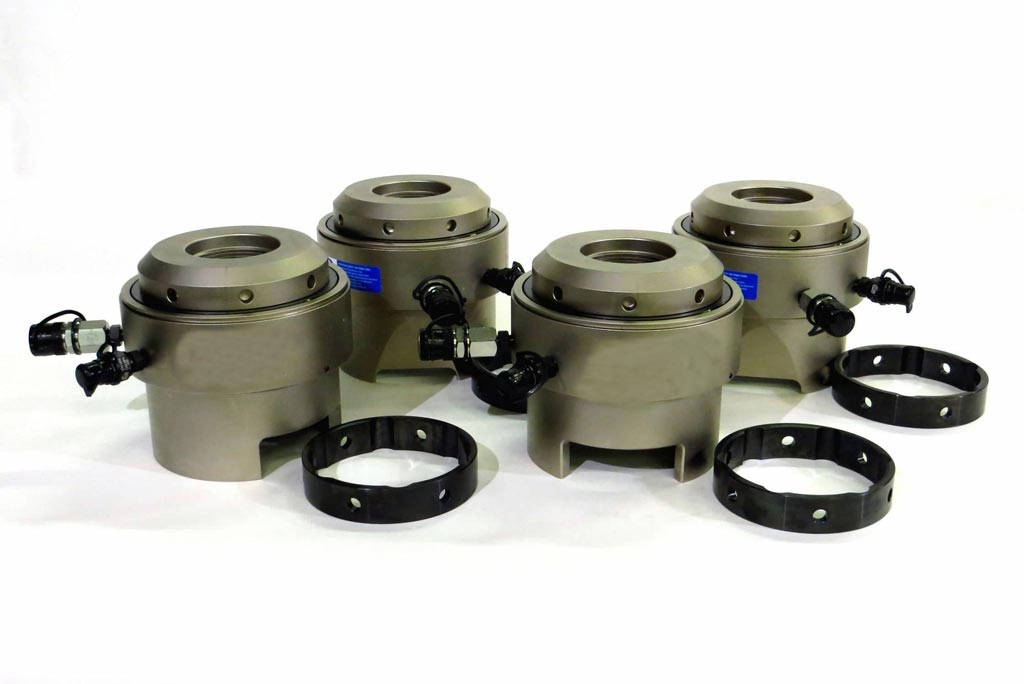

four hydraulic bolt tensioner

Table of contents

Are you interested in delving into the intricacies of a stud stretcher and understanding the applications of a hydraulic bolt tensioner. Within this article, you’ll find all the essential information to effectively evaluate the diverse hydraulic bolt tensioner prevailing in the market.

Let’s immerse in the realm of hydraulic-assisted clamping. Explore the intricacies of hydraulic clamping, understanding its mechanisms, applications, and the distinct advantages it offers in various engineering contexts. From the foundational principles to the cutting-edge technologies, this article aims to equip you with a thorough understanding of hydraulic clamping solutions.

Hydraulic bolt tensioning: An In-Depth Explanation

Are you eager to grasp the intricacies of controlled tightening in an assembly using a hydraulic bolt wrench or tensioner? A hydraulic wrench not only saves time but also ensures a more reliable tightening process, capable of delivering torque levels impossible to achieve with mere manual force and a torque wrench. By manipulating the pump’s output pressure and a clamping flange, this solution yields commendable results. So, delve into this widely adopted technique in the industry and its various variations.

How does it work?

Hydraulic bolt tensioning operates by utilizing pressurized fluid to generate clamping force. Initially, a hydraulic pump feeds the system with fluid, creating high pressure. This pressure is then transmitted to a hydraulic cylinder specially designed for clamping purposes. When the cylinder is activated, it imparts force onto the piece being clamped, compressing the assembly. The clamping force is sustained by the constant pressure of the hydraulic fluid, ensuring a uniform and controlled force on the workpiece.

Hydraulic bolt tensioning tools

Let’s explore the array of tools available in the market for hydraulic tightening, each designed to address specific needs in various industrial applications.

  1. Hydraulic Wrench: Hydraulic wrenches are precision tools crafted specifically for tightening or loosening bolts or nuts using a hydraulic mechanism. They come in various sizes and configurations to accommodate different types of fastenings.
  2. Hydraulic bolt tensioner: Hydraulic tensioners are employed to apply precise tension to a bolt or threaded rod. They enable achieving uniform and controlled tightening in critical applications, ensuring optimal clamping force.
  3. Hydraulic Impact Wrench: Combining the efficiency of an impact wrench with hydraulic power, these tools deliver rapid and precise tightening. They find frequent use in industrial applications where reliable and swift tightening is essential.
  4. Hydraulic Pump: Hydraulic pumps supply the necessary pressure to activate hydraulic tightening tools. They come in various types, including manual, electric, and pneumatic pumps, offering flexibility in power sources to suit different operational needs.
  5. Hydraulic Cylinder: While primarily utilized for lifting and positioning heavy loads, hydraulic cylinders can also be repurposed for tightening by exerting direct force on the piece to be clamped. This dual functionality showcases the versatility of hydraulic tools.
  6. Hydraulic Torque Wrench: Hydraulic torque wrenches provide controlled torque application, ensuring precise tightening in critical assemblies. Their hydraulic design allows for the achievement of high torque levels that may be unattainable with traditional wrenches.



Each tool is meticulously engineered to meet specific tightening requirements across diverse industrial applications. The selection of the appropriate tool depends on factors such as the size of the fastening, the level of precision required, the frequency of usage, and the specifications of the application.
By understanding the distinct features and applications of these hydraulic bolt tensioning tools, engineers can make informed decisions to optimize the tightening process in line with the unique demands of their projects.

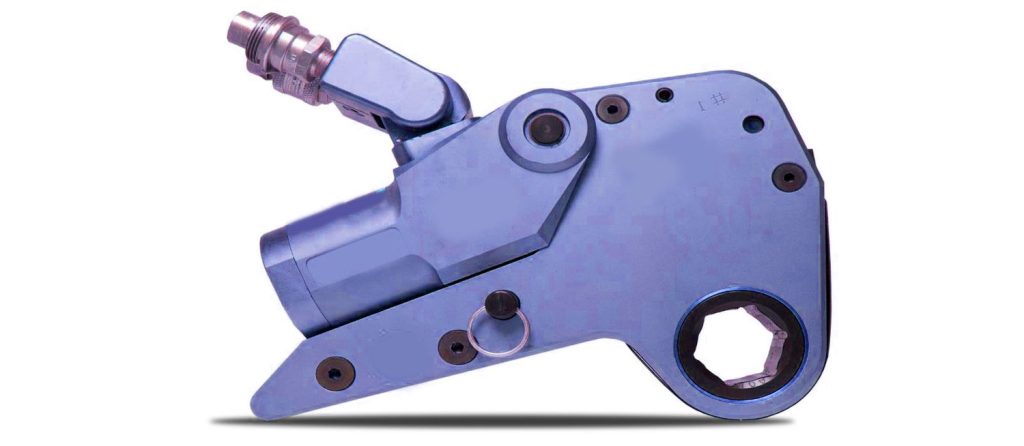

a blue hydraulic torque wrench

Hydraulic Torque Wrench

In the realm of hydraulic torque wrenches, two of the most prevalent tools are:

1. Hytorc Hydraulic Wrench: The Hytorc hydraulic wrench stands as a stalwart in the market, renowned for its precision and reliability in controlled tightening. Engineered with cutting-edge hydraulic mechanisms, it provides efficient torque application, making it suitable for a wide range of industrial applications. Its modular design and diverse configurations ensure adaptability to various fastening needs.

 2. Titan Hydraulic Wrench: The Titan hydraulic wrench is another noteworthy player in the hydraulic torque wrench arena. Recognized for its robust build and consistent performance, it excels in delivering precise torque in demanding industrial settings. The Titan wrench, like its counterparts, is available in multiple sizes and torque capacities, catering to the diverse requirements of tightening operations.

 3. BoltPro Hydraulic Wrench: The BoltPro hydraulic wrench stands out for its innovative features and advanced technology. Equipped with intelligent control systems, it offers real-time monitoring and feedback during the tightening process. This not only enhances precision but also contributes to the overall efficiency and reliability of the tightening operation.

 4. UltraTorque Hydraulic Wrench: The UltraTorque hydraulic wrench boasts a high torque output, making it suitable for heavy-duty applications. Its robust construction ensures durability, and the incorporation of advanced hydraulic systems enables precise torque control. With a focus on user-friendly operation, the UltraTorque wrench enhances the overall ease and efficiency of the tightening process.

Each hydraulic torque wrench, whether it be the renowned Hytorc or Titan models or the advanced BoltPro and UltraTorque variants, plays a crucial role in achieving accurate and controlled tightening. Engineers must carefully consider factors such as torque requirements, operational conditions, and the specific features of each wrench when selecting the most suitable tool for their industrial applications.

By understanding the diverse options available and the unique features of each hydraulic torque wrench, engineers can make informed decisions to optimize the tightening process according to the specific demands of their projects.

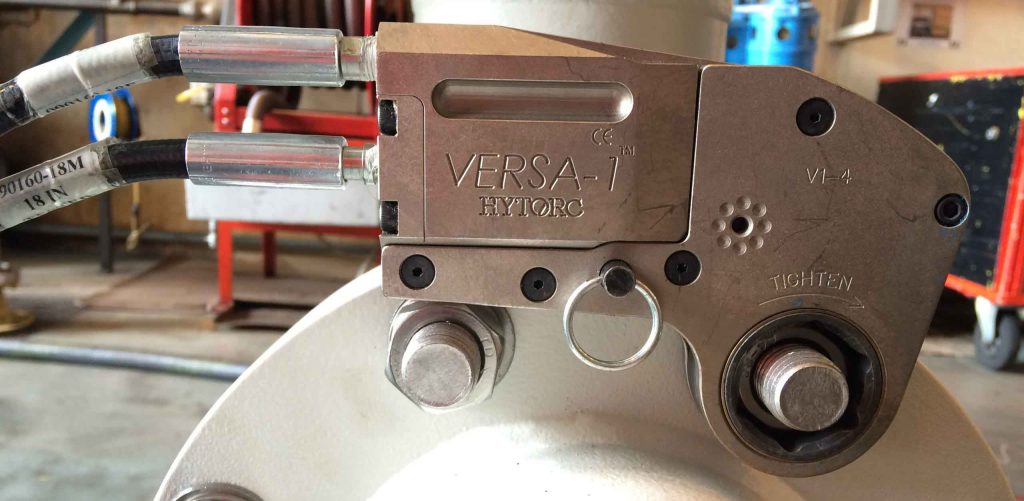

hytorq hydraulic torque wrench

How hydraulic bolt tensioning works ?

The hydraulic bolt tensioning method proves invaluable for large-scale construction projects. Hydraulic tensioners optimize the tightening process, ensuring a remarkably uniform clamping of bolts. What sets them apart is their capability to provide consistency without the need for manual force. The operation is straightforward – position the hydraulic jacks on the rods to be tightened and operate the pump. More detailed information can be found here.

Operational Mechanism:

In essence, the process involves using a hydraulic jack to extend the bolt. After the bolt elongates, the nut is tightened, and the rod is released. This way, the force applied by the hydraulic jack is contained within the bolt by the nut. With prior knowledge of the force applied by the hydraulic jack to extend the bolt, we can deduce the force exerted on the assembly. An hydraulic bolt tensioning is a device designed to apply precise tension to a bolt or threaded rod during tightening. Here’s how it operates:

 1. Preparation:
Initially, the hydraulic tensioner is secured onto the bolt to be tightened. Ensuring proper positioning and alignment of the tensioner with the bolt is crucial for effective clamping.

 2. Hydraulic Connection:
Once the tensioner is in place, a hydraulic connection is established between the hydraulic pump and the tensioner. This connection allows pressurized hydraulic fluid to be directed to the tensioner.

 3. Pressure Application:
The hydraulic pump is activated to increase the pressure of the hydraulic fluid. This pressure is transmitted to the tensioner, equipped with an internal hydraulic piston.

 4. Piston Movement:
Under the influence of hydraulic pressure, the piston moves inward within the tensioner. This movement compresses a load or washer inside the tensioner, generating tension in the threaded rod or bolt.

 5. Controlled Tightening:
The hydraulic tensioner is designed to apply precise and controlled tension. Once the target tension is achieved, the pump can be stopped, and the pressure maintained. The tensioner is then locked in this position to sustain the tension.

 6. Retraction:
Upon completion of tightening, the hydraulic pressure is released, and the tensioner can be removed from the bolt.

Advantages of Hydraulic Tensioner

• Precise and uniform tightening: Hydraulic bolt tensioners deliver precise and uniform tension, ensuring consistent clamping force across multiple bolts.
• Adaptability in confined environments : The ability to operate in confined spaces makes hydraulic tensioners ideal for applications with spatial constraints.
• Reduced risk of bolt overload: Hydraulic bolt tensioners help mitigate the risk of overloading bolts, contributing to the overall safety and reliability of the tightened assembly.

Widely utilized in applications where precise and controlled tightening is paramount, such as in the construction of metal structures, industrial equipment, and offshore applications, hydraulic bolt tensioners stands as a reliable and efficient tool in the engineer’s arsenal.

Drawbacks of hydraulic bolt tensioning

Not all bolts in an assembly are readily accessible for attachment to the hydraulic jack; to elongate the bolt, access to the ends is imperative, which may not always be feasible in a complex assembly. The precision of tightening with a hydraulic bolt tensioning has a final uncertainty of ± 15%. Why? There are uncertainties introduced into the assembly during nut tightening. This method comes with several disadvantages. Hydraulic bolt tensioning is a process that utilizes hydraulic fluid to apply clamping force to a mechanical piece, such as a nut or bolt. While it is highly effective in numerous industrial applications, it does present certain drawbacks in terms of precision compared to other tightening methods.

Here are some technical reasons why it may lack precision:

 1. Fluid Compressibility:
Hydraulic fluids exhibit some compressibility, meaning they can compress under pressure. When force is applied, part of this pressure may be absorbed by fluid compression, leading to a loss of precision.

 2. System Tolerances:
Components of a hydraulic tensioning system, including cylinders, pumps, and hoses, may have manufacturing tolerances that affect precision. For instance, play in joints or dimensional variations can influence performance.

 3. Leaks:
Hydraulic systems may experience leaks, even at minimal levels. These leaks can result from seal wear, imperfections in components, or other factors. Leaks can alter applied pressure and, consequently, precision in tensioning.

 4. Elasticity of Components:
Both the components of the piece being tightened and those of the tensioning system itself may exhibit some elasticity. This means they can deform under applied pressure, influencing force distribution and tightening precision.

 5. Thermal Effects:
Temperature variations can impact the properties of hydraulic fluid and system components. This can lead to changes in applied pressure, affecting tensioning precision.

 6. Pressure Maintenance:
Consistently maintaining pressure in a hydraulic system can be challenging. Pressure fluctuations may occur due to temperature variations, leaks, or other factors, impacting the consistency of tensioning.

 7. Calibration and Maintenance:
Hydraulic systems need regular calibration and maintenance to ensure proper operation. Failure to calibrate or maintain them appropriately can result in precision issues.

Despite these considerations, it’s crucial to note that hydraulic bolt tensioning remains an effective and widely used tightening method in many industrial applications. However, for applications requiring extreme precision, other tightening methods, such as ultrasonic bolt load measurement, may be preferred. Choosing the appropriate tightening method will depend on the specific requirements of the application.


Combining hydraulic bolt tensioning with TRAXX-M2: A cutting-edge fastening solution

This synergy represents the pinnacle of fastening solutions.The amalgamation of hydraulic bolt tensioning and its verification through ultrasonic bolt tension meter is highly efficient and particularly prevalent in cutting-edge industries, notably aerospace, construction, and energy. In optimal scenarios, this technique achieves unparalleled precision in fastening. The combination of hydraulic bolt tensioning tools  and the TRAXX-M2 system offers several significant advantages for achieving optimized fastening of a threaded assembly:

 1. Precise Tension Control:
Hydraulic bolt tightening allows for the application of precise and controlled clamping force using pressurized hydraulic fluid. The TRAXX-M2 system complements this precision by providing real-time tension measurements, ensuring the target tension is reached.

 2. Continuous Monitoring:
The TRAXX-M2 system provides continuous monitoring of bolt tension during the tightening process. This enables the detection of any variations or anomalies, allowing for adjustments as needed and ensuring optimal fastening.

 3. Overload Prevention:
The combination of hydraulic tightening and TRAXX-M2 helps prevent potential bolt overloads. The system can issue alerts in case of overtension, thereby contributing to preventing premature assembly failures.

 4. Reduced Human Error Risks:
Hydraulic bolt tightening  and TRAXX-M2 systems often feature automated functionalities and alarms that warn of improper tightening. This reduces the risks of human errors during the fastening process.

 5. Time Savings:
By combining these technologies, the fastening process can be quicker and more efficient. The real-time measurement capability of the TRAXX-M2 system allows for instant adjustments to hydraulic pressure if necessary, avoiding delays in the process.

 6. Traceability and Documentation:
TRAXX-M2 systems are often equipped with traceability functions, meaning fastening data is recorded and can be documented for verification and quality assurance purposes.

 7. Adaptability to Various Applications:
The combination of hydraulic bolt tightening and TRAXX-M2 can be employed in a wide range of industrial applications, from construction operations to complex assemblies in the energy sector.

 8. Enhanced Safety:
By ensuring optimal fastening, this combination contributes to improving the safety of threaded assemblies, thereby reducing the risks of potentially hazardous failures.

In summary, the synergy between hydraulic bolt tightening  and the TRAXX-M2 system provides a comprehensive solution for the optimal fastening of threaded assemblies. It combines the precision of hydraulic bolt tightening with real-time monitoring and documentation capabilities of the TRAXX-M2 system, ensuring reliable and safe results.
